| Part Desc. | Weight (KG) | Wheel Ø (D) [mm] | Tire width (T2) [mm] | Load capacity [kg] | Bearing type | Axle bore Ø (d) [mm] | Hub length (T1) [mm] | Tread & tire hardness | Wheel Center |
|---|

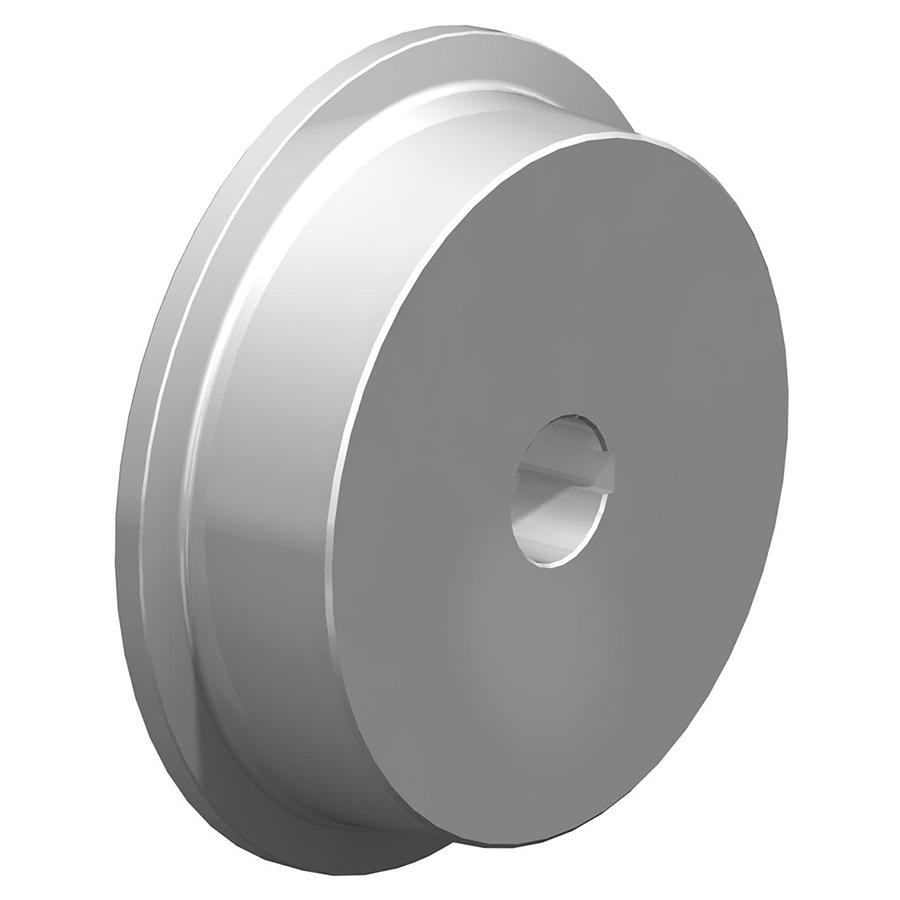

SPKVSN – Solid steel flanged wheel drive wheelswith hub keyway
All Tires and Bands, Drive Wheels, Hub Fitting Wheels and Basic Wheels
- Wheel: Made of steel.
- Color: silver.
- Wheel centre/rim: – Color: silver.
- Chemical characteristics: Oil-resistant.
- Operating temperature: -30° C up to +300° C, load capacity reduction of 50% at +300° C.
- The indicated load capacities refer to the following rail profiles acc.
- to DIN 536 (crane rail standard): SPKVSN 200: A 45; SPKVSN 250: A 55, SPKVSN 300: A 65.
- Maintenance-free under standard conditions.
