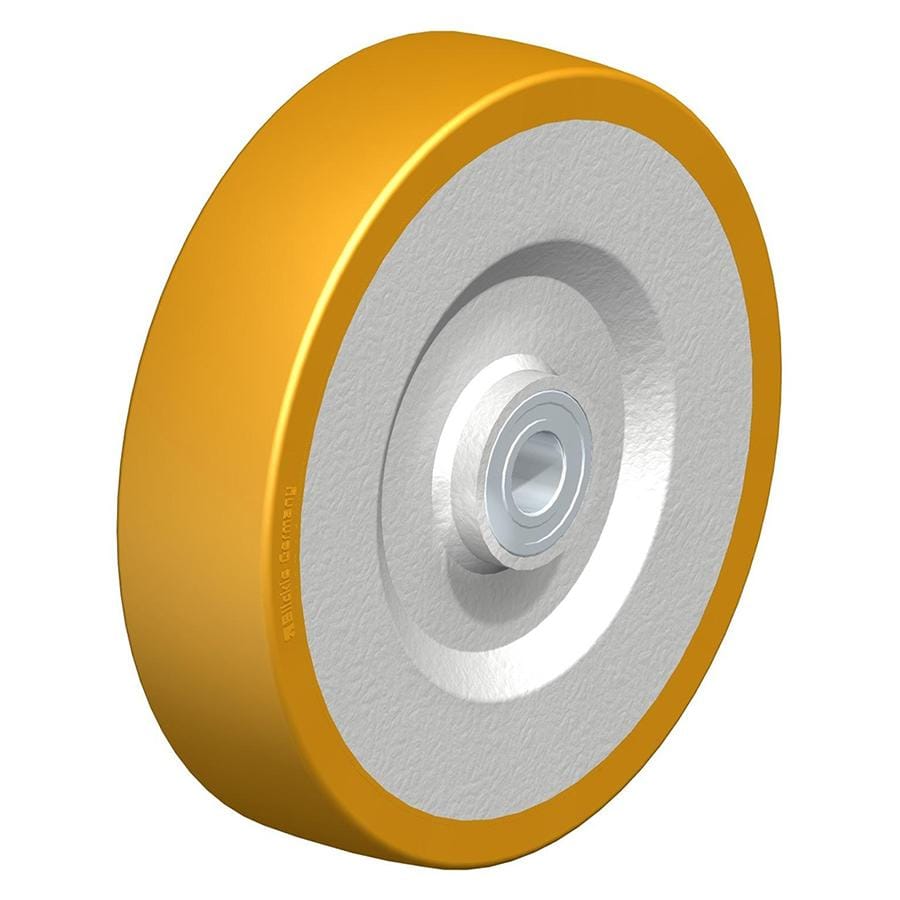

SETH – Heavy duty wheel with Blickle Extrathane® polyurethane tread

The wheel centre of the SETH series is made of triple-welded pressed steel with a tubular steel hub, onto which the high-quality polyurethane-elastomer Blickle Extrathane® tread is cast. This provides a high resistance to cut and tear propagation, low rolling resistance and a high load capacity.

The SETH series can also be used for high speed applications up to 10 km/h with a reduced load capacity. The ultra-robust wheel centre makes the wheels particularly resistant to dirt and shocks.

  • Wheel: Made of high-quality polyurethanee-elastomer Blickle Extrathane®.
  • Color: light brown.
  • Wheel centre/rim: Pressed thick-walled steel, triple-welded, with tubular steel hub, lacquered.
  • Casted tread.
  • Color: silver.
  • Chemical characteristics: High chemical resistance to many aggressive substances.
  • Operating temperature: -25° C to +70° C, temporarily up to +90° C.
  • At ambient temperatures above +40° C the load capacity is reduced.
  • The indicated load capacity refers to applications without obstacles.
  • Maintenance-free under standard conditions.
Part Desc.Weight (KG)Wheel Ø(D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeAxle bore Ø(d) [mm]Hub length (T1) [mm]Tread & tire hardnessWheel Center
