|Part Desc.||Weight (KG)||Wheel Ø (D) [mm]||Tire width (T2) [mm]||Load capacity [kg]||Bearing type||Total height [mm]||Plate size [mm]||Bolt hole spacing [mm]||Bolt hole Ø [mm]||Offset swivel caster [mm]||Stem Ø [mm]||Stem Legnth [mm]||Tread & tire hardness||Wheel Center|

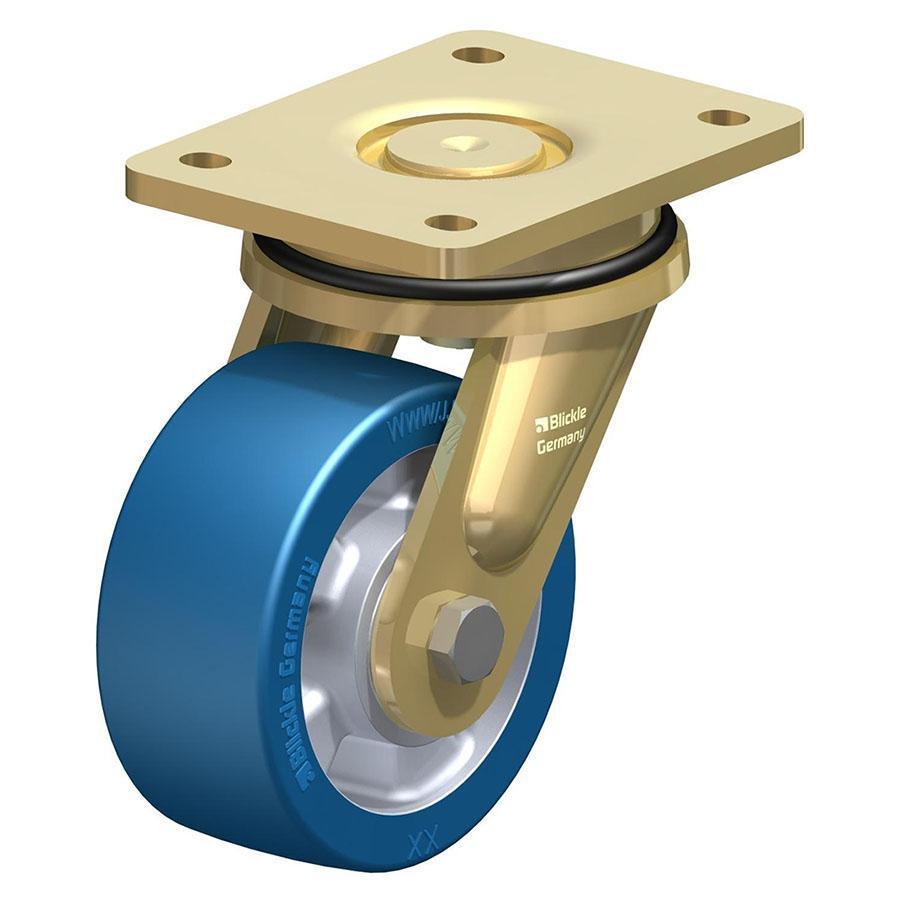

LS – Welded steel heavy duty swivel caster
Brackets: Particularly rugged welded steel construction, with axial grooved ball bearing DIN 711 and tapered casterr bearing DIN 720 in the swivel head, dust and splash-proof, fitted grease nipple, bolted and secured with a welded very strong central kingpin. Bolted wheel axle. Zinc-plated, yellow-passivated, Cr6-free. Wheel: Made of high-quality polyurethanee-elastomer Blickle Besthane® Soft, very low rolling resistance, high dynamic load capacity. Colour: blue. Wheel centre/rim: Made of die-cast aluminium. Casted tread. Colour: silver grey. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +40° C the load capacity is reduced. The indicated load capacity refers to applications without obstacles. Maintenance-free under standard conditions.
