|Part Desc.||Weight (KG)||Wheel Ø (D) [mm]||Tire width (T2) [mm]||Load capacity [kg]||Bearing type||Total height [mm]||Plate size [mm]||Bolt hole spacing [mm]||Bolt hole Ø [mm]||Offset swivel caster [mm]||Stem Ø [mm]||Stem Legnth [mm]||Tread & tire hardness||Wheel Center|

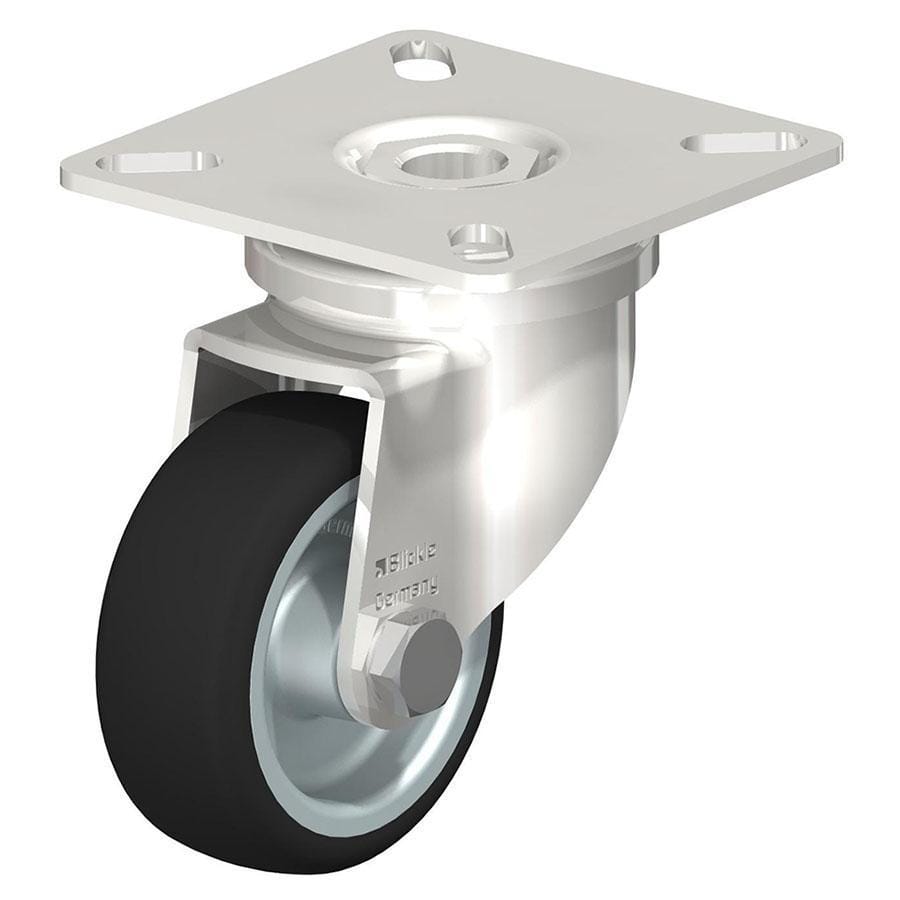

LPXA – Stainless steel light duty swivel caster with top plate fitting
Brackets: Made of pressed high-quality, chromium-nickel stainless steel (Material No. 1.4301/AISI 304), with double ball bearing in the swivel head, strong central kingpin, ball predection by the special top plate and ball disc design. The special Blickle dynamic riveting process of the swivel head results in minimal swivel head play and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. All parts incl. axle material are corrosion-resistant. Bolted wheel axle. Vibration-ground finished. Wheel: Made of high-quality thermoplastic polyurethanee. Colour: dark grey. Wheel centre/rim: Made of high-quality, impact-resistant nylon. Chemically bonded. Colour: grey. Chemical characteristics: Very high chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +35° C the load capacity is reduced. Maintenance-free under standard conditions.
