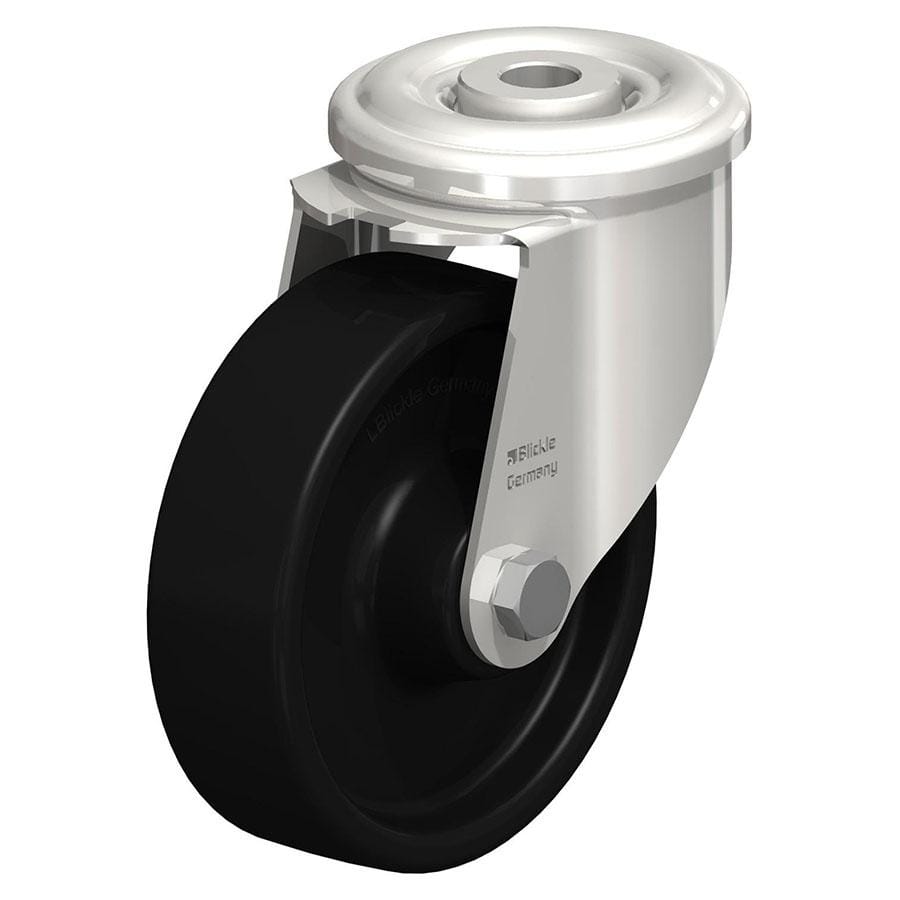

LIXR – Heat-resistant stainless steel swivel caster with bolt hole fitting

Brackets: Made of pressed high-quality, chromium-nickel stainless steel (Material No. 1.4301/AISI 304), with double ball bearing in the swivel head, strong central kingpin. The special Blickle dynamic riveting process of the swivel head results in smooth rolling characteristics, increased service life and the swivel head play is set specifically for high temperature applications, with special heat-resistant grease. With Teflon-coated stainless steel axle tube. All parts such as balls, central kingpin and axle material are corrosion-resistant. Bolted wheel axle. Vibration-ground finished. Wheel: Made of heat-resistant phenolic resin. Colour: black. Wheel centre/rim: – Colour: black. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -35° C to +260° C, temporarily up to +300° C. Wheels are only conditionally suitable for rough floors and crossing thresholds due to the abrasive effect on the material and the limited mechanical stability of phenolic resin.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Offset swivel caster [mm]Stem Ø [mm]Stem Legnth [mm]Tread & tire hardnessWheel Center
