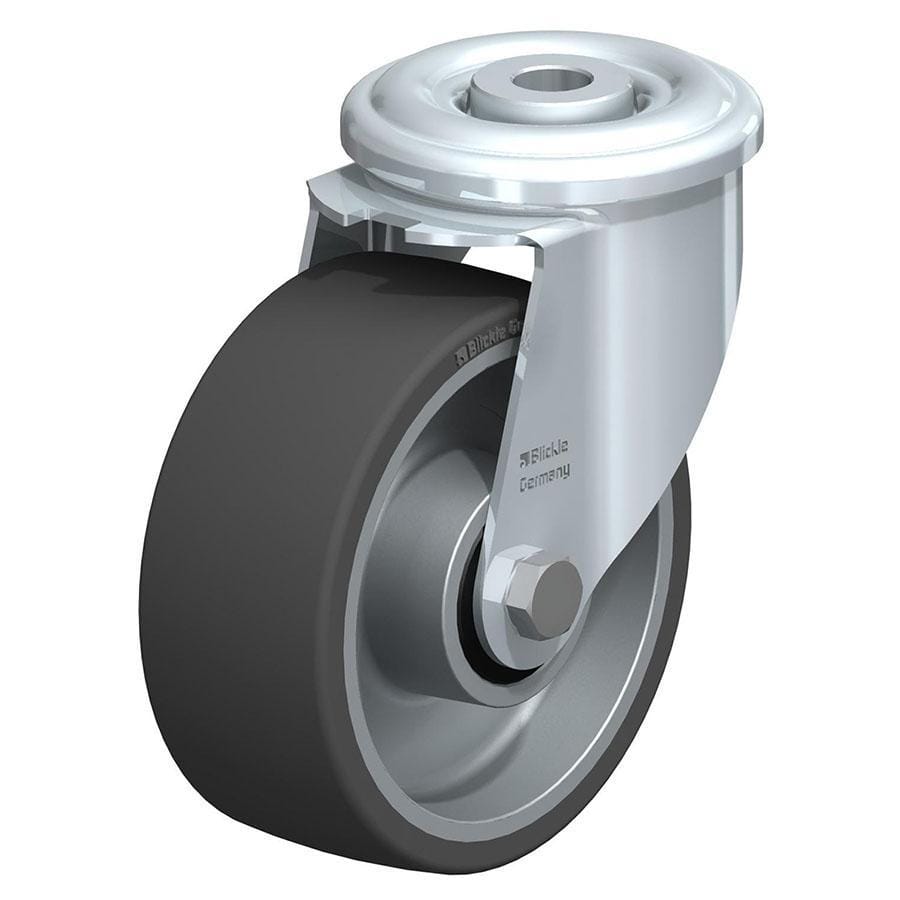

LIR – Heat-resistant pressed steel swivel caster with bolt hole fiting


Brackets: Made of pressed steel, with double ball bearing in the swivel head, strong central kingpin, ball predection by the special top plate design. The special Blickle dynamic riveting process of the swivel head results in smooth rolling characteristics, increased service life and the swivel head play is set specifically for high temperature applications, with special heat-resistant grease. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Wheel: Made of highly heat-resistant silicone rubber. Colour: black. Wheel centre/rim: Made of die-cast aluminium. Vulcanised tyre. Colour: silver grey. Chemical characteristics: Chemical resistance to many aggressive substances, except oils. Operating temperature: -25° C to +250° C. Furnace temperatures above +300° C can be tolerated temporarily, but the temperature at the tread must not exceed +250° C.
