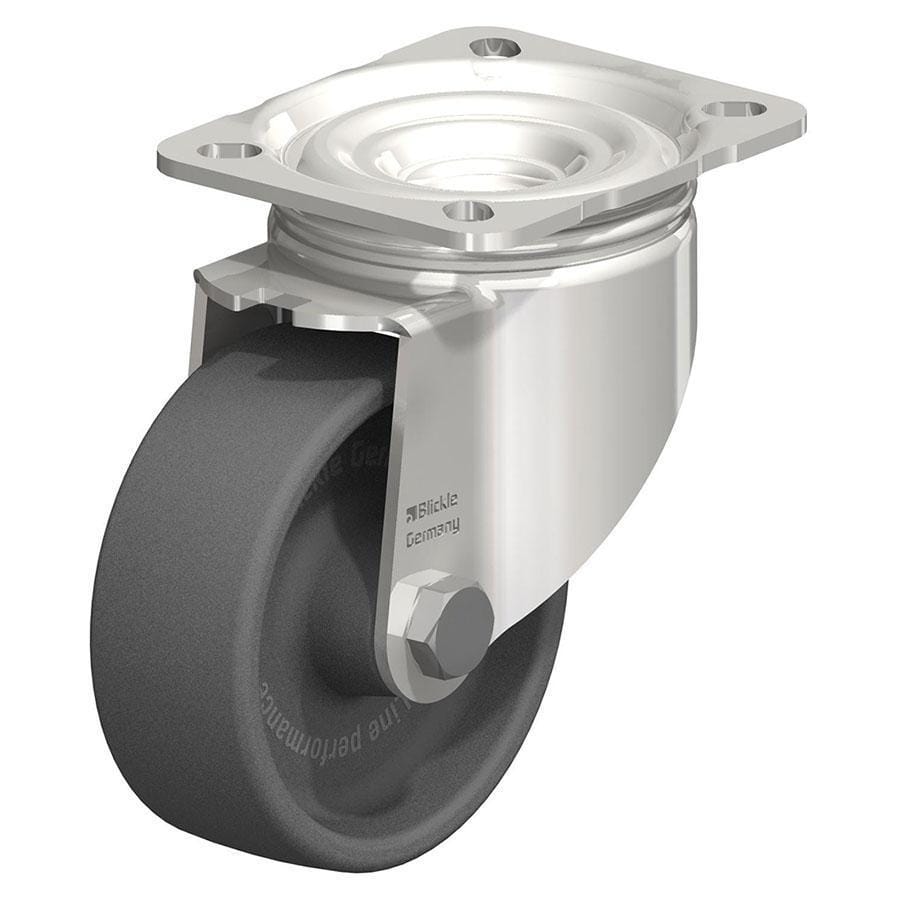

LIKX – Heat-resistant stainless steel swivel caster with top plate fitting

Brackets: Made of pressed high-quality, chromium-nickel stainless steel (Material No. 1.4301/AISI 304), with double ball bearing in the swivel head. The special Blickle dynamic riveting process of the swivel head results in smooth rolling characteristics, increased service life and the swivel head play is set specifically for high temperature applications, with special heat-resistant grease. All parts such as balls, central kingpin and axle material are corrosion-resistant. Bolted wheel axle. Vibration-ground finished. Wheel: Made of high-quality, impact-resistant and highly heat-resistant nylon. Colour: dark grey. Wheel centre/rim: – Colour: dark grey. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +250° C. Furnace temperatures above +300° C can be tolerated temporarily, but the temperature at the wheel must not exceed +250° C.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Offset swivel caster [mm]Stem Ø [mm]Stem Legnth [mm]Tread & tire hardnessWheel Center
