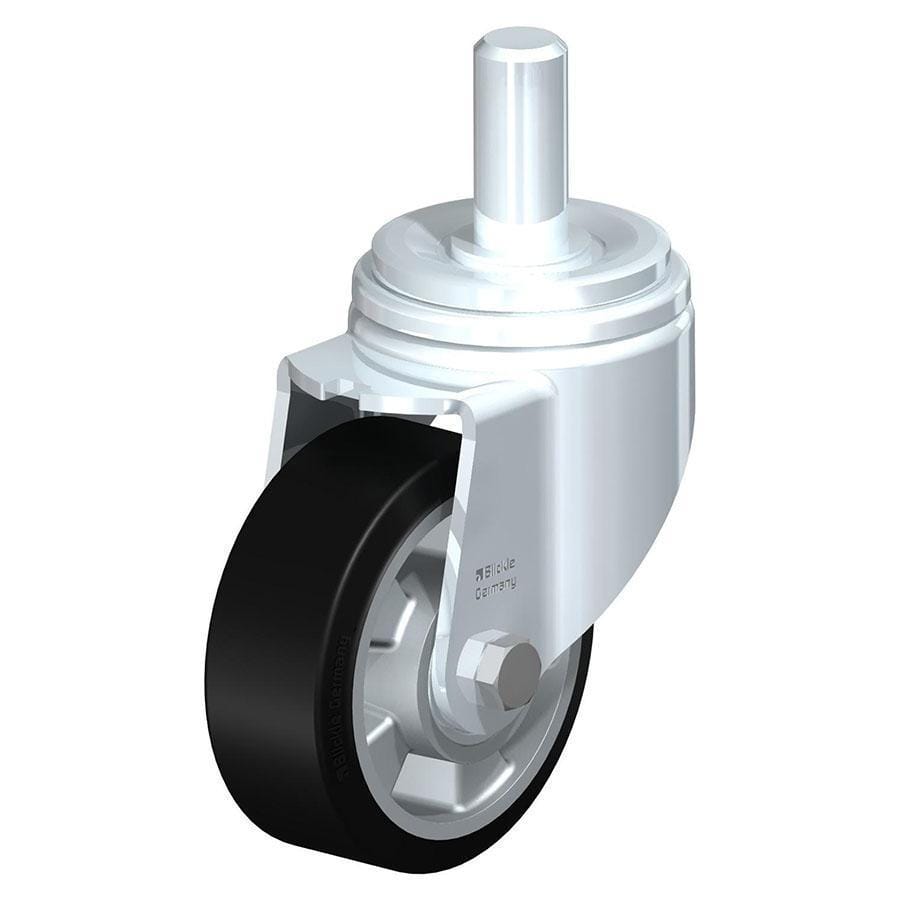

LHZ – Pressed steel swivel caster

Brackets: Made of heavy pressed steel, with heavy fork and top plate, very strong bolted and secured welded steel plug-in stem, double ball bearing in the swivel head, additionally reinforced by the integration of four specially shaped and hardened bearing seats resulting in a very high resistance to shock and impact loads. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Wheel: Made of high-quality elastic solid rubber in smooth rolling quality “Blickle EasyRoll”. Colour: black. Wheel centre/rim: Made of die-cast aluminium. Vulcanised tyre. Colour: silver grey. Chemical characteristics: Chemical resistance to many aggressive substances, except oils. Operating temperature: -25° C to +80° C, temporarily up to +100° C. At ambient temperatures above +60° C the load capacity is reduced. Maintenance-free under standard conditions.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Offset swivel caster [mm]Stem Ø [mm]Stem Legnth [mm]Tread & tire hardnessWheel Center
