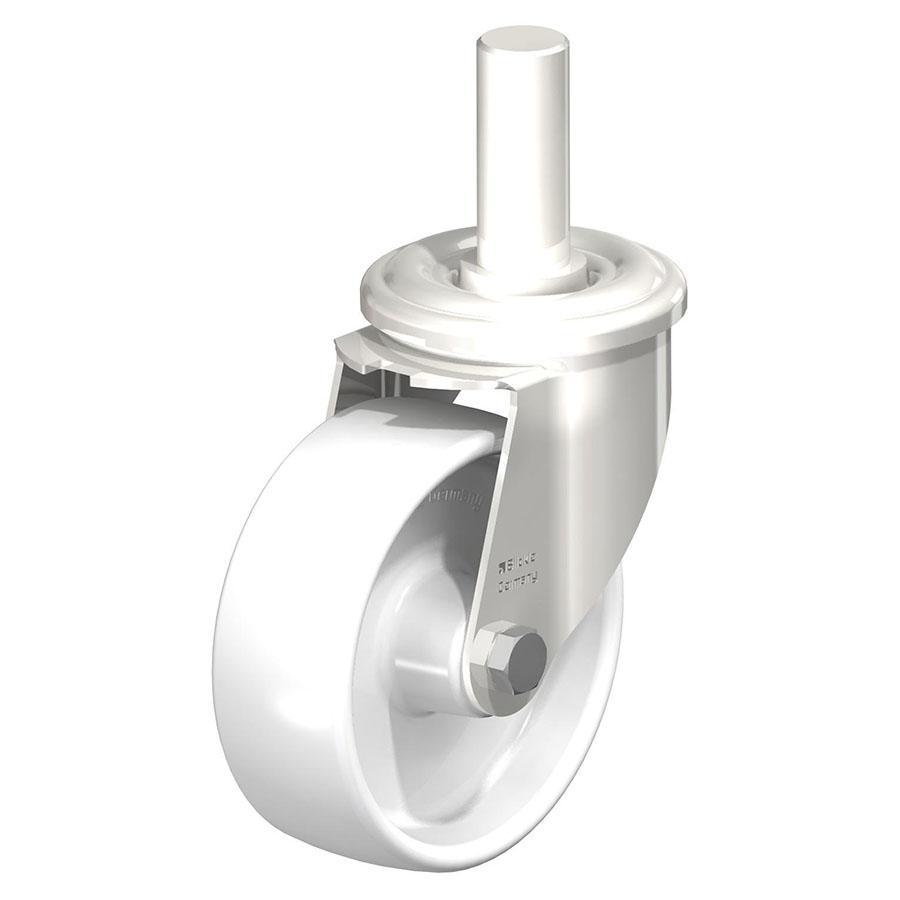

LEXZ – Stainless steel swivel caster with stem fitting

Brackets: Made of pressed high-quality, chromium-nickel stainless steel (Material No. 1.4301/AISI 304), with double ball bearing in the swivel head, ball predection by the special top plate and ball disc design. The special Blickle dynamic riveting process of the swivel head results in minimal swivel head play and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. All parts incl. axle material are corrosion-resistant. The stainless steel plug-in stem and central kingpin are screwed and secured or a single unit. Bolted wheel axle. Vibration-ground finished. Wheel: Made of high-quality, impact-resistant nylon. Colour: natural white. Wheel centre/rim: – Colour: natural white. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +80° C. At ambient temperatures above +35° C the load capacity is reduced. Maintenance-free under standard conditions.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Offset swivel caster [mm]Stem Ø [mm]Stem Legnth [mm]Tread & tire hardnessWheel Center
