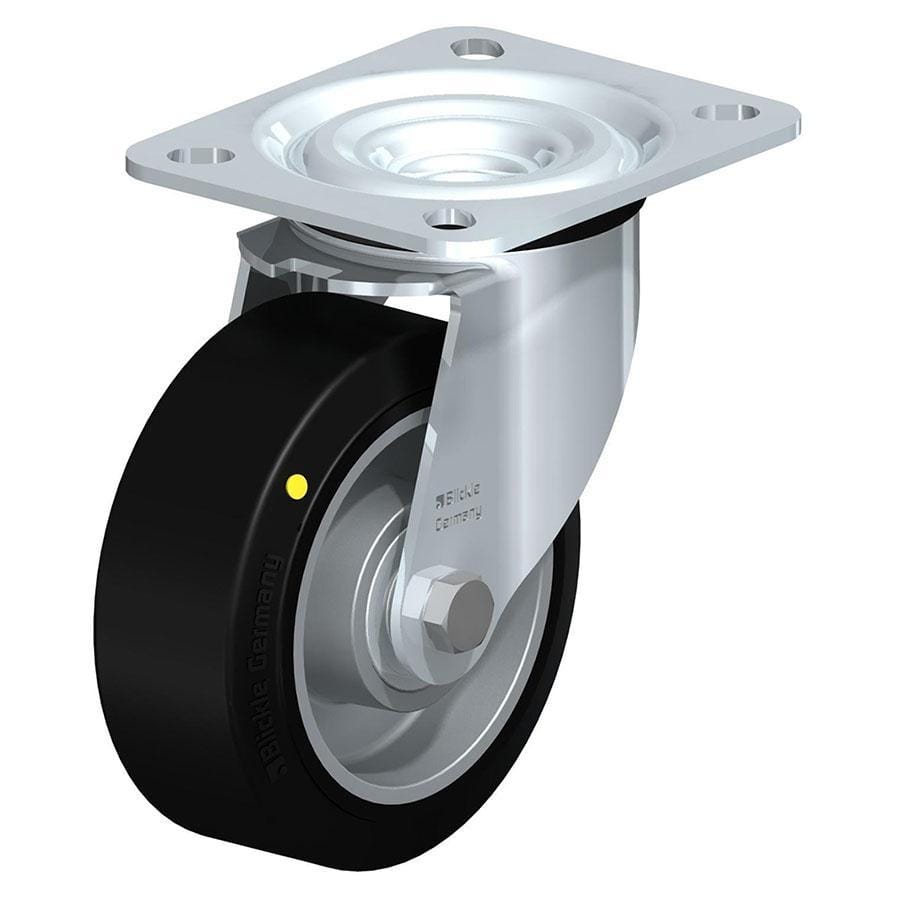

L – Pressed steel swivel caster

Brackets: Made of pressed steel, with double ball bearing in the swivel head, ball predection by the special top plate and ball disc design. The special Blickle dynamic riveting process of the swivel head results in minimal swivel head play and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Wheel: Made of high-quality elastic solid rubber in smooth rolling quality “Blickle EasyRoll”. Colour: black. Wheel centre/rim: Made of die-cast aluminium. Vulcanised tyre. Colour: silver grey. Chemical characteristics: Chemical resistance to many aggressive substances, except oils. Operating temperature: -25° C to +80° C, temporarily up to +100° C. At ambient temperatures above +60° C the load capacity is reduced. Maintenance-free under standard conditions.

Part Desc.Weight (KG)Wheel Ø(D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Offsetswivel caster [mm]Tread & tire hardnessWheel Center
