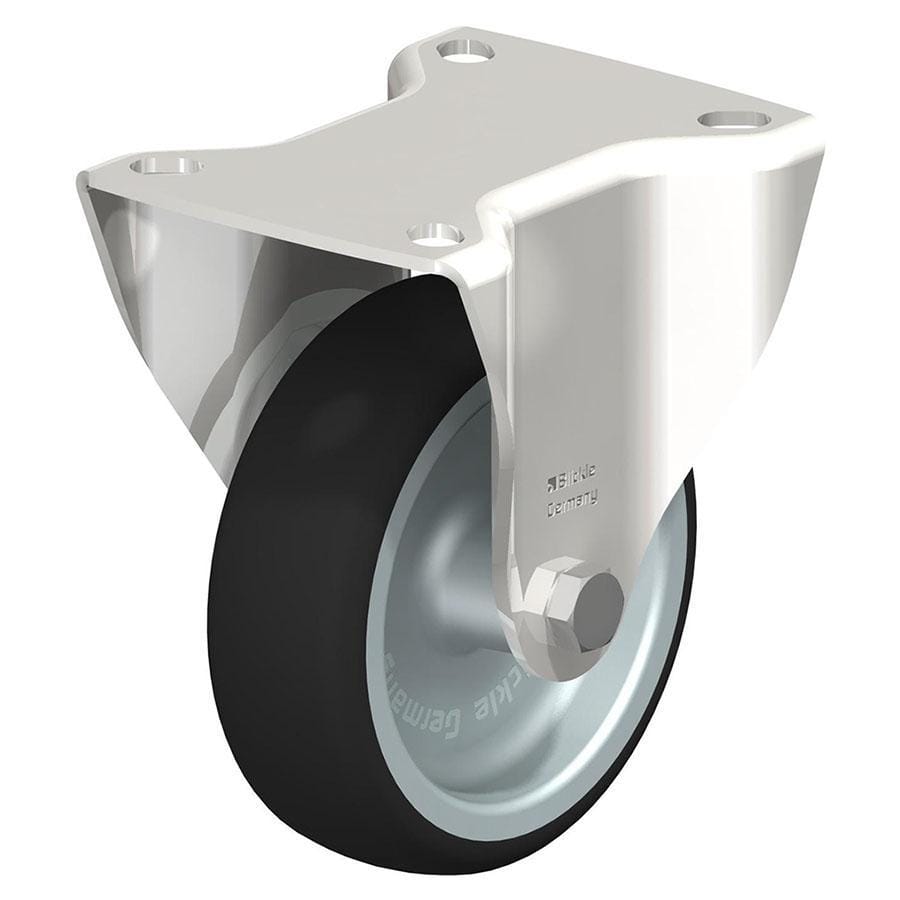

BX – Stainless steel fixed caster with top plate fitting

Brackets: Made of pressed high-quality, chromium-nickel stainless steel (Material No. 1.4301/AISI 304). All parts incl. axle material are corrosion-resistant. Bolted wheel axle. Vibration-ground finished. Wheel: Made of high-quality thermoplastic polyurethane. Colour: dark grey. Wheel centre/rim: Made of high-quality, impact-resistant nylon. Chemically bonded. Colour: grey. Chemical characteristics: Very high chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +35° C the load capacity is reduced. Maintenance-free under standard conditions.

Part Desc. Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Tread & tire hardnessWheel Center
