|Part Desc.||Weight (KG)||Wheel Ø (D) [mm]||Tire width (T2) [mm]||Load capacity [kg]||Bearing type||Total height [mm]||Plate size [mm]||Bolt hole spacing [mm]||Bolt hole Ø [mm]||Tread & tire hardness||Wheel Center|

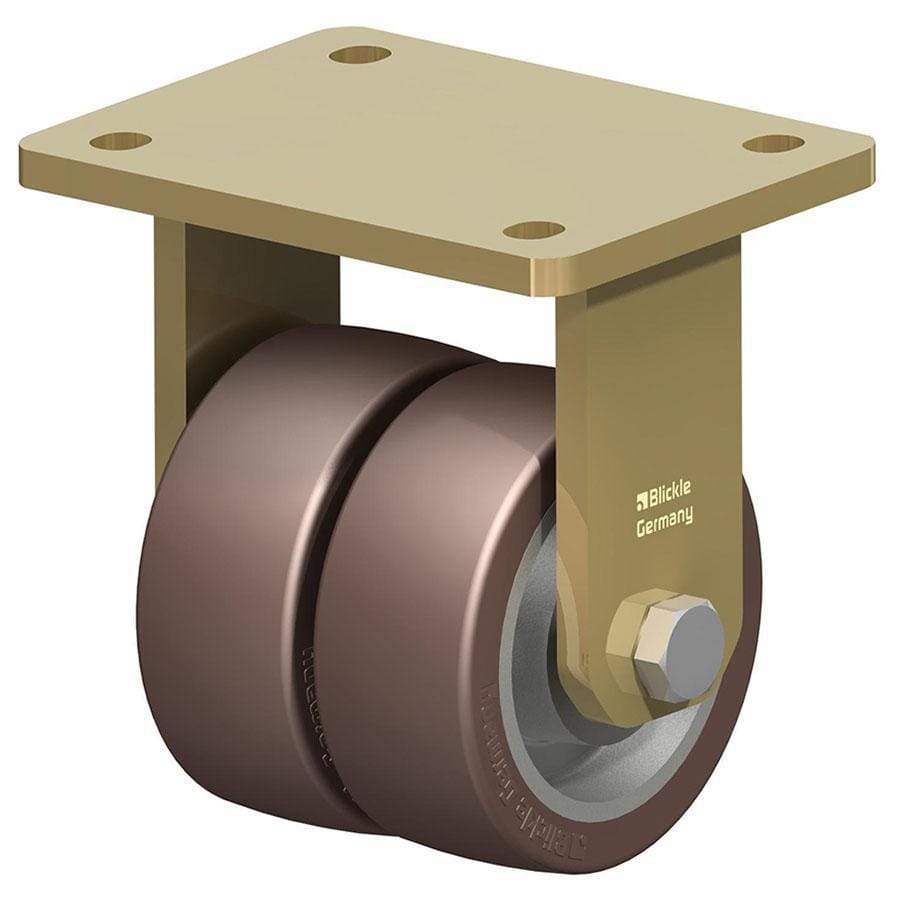

BSD – Welded steel heavy duty twin wheel fixed caster
Brackets: Particularly rugged welded steel construction. Bolted wheel axle. Zinc-plated, yellow-passivated, Cr6-free. Wheel: Made of high-quality polyurethane-elastomer Blickle Besthane®, high dynamic load capacity. Colour: brown. Wheel centre/rim: Made of grey cast iron, lacquered. Casted tread. Colour: silver. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +40° C the load capacity is reduced. The indicated load capacity refers to applications without obstacles. Maintenance-free under standard conditions.
