| Part Desc. | Weight (KG) | Wheel Ø (D) [mm] | Tire width (T2) [mm] | Load capacity [kg] | Bearing type | Total height [mm] | Plate size [mm] | Bolt hole spacing [mm] | Bolt hole Ø [mm] | Tread & tire hardness | Wheel Center |
|---|

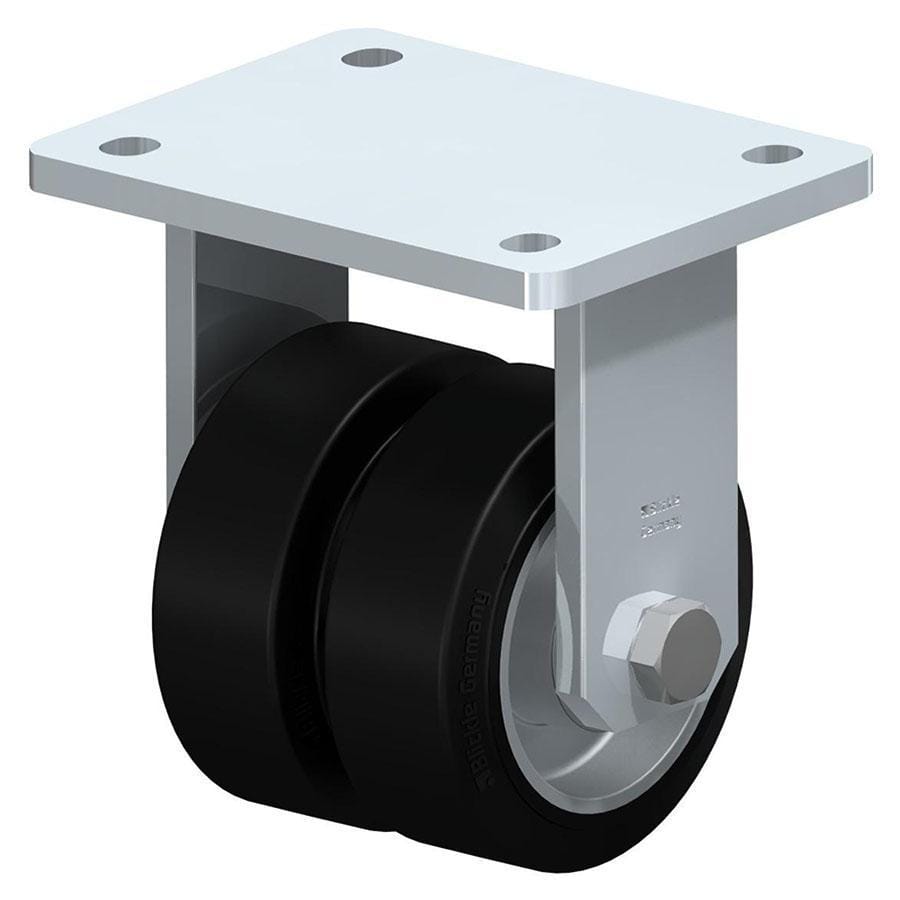

BOD – Pressed steel extra heavy duty twin wheel compact fixed caster
All Casters
Brackets: Particularly rugged welded steel construction. Bolted wheel axle. Lacquered, red. Wheel: Made of high-quality elastic solid rubber in smooth rolling quality “Blickle EasyRoll”. Colour: black. Wheel centre/rim: Made of die-cast aluminium. Vulcanised tyre. Colour: silver grey. Chemical characteristics: Chemical resistance to many aggressive substances, except oils. Operating temperature: -25° C to +80° C, temporarily up to +100° C. At ambient temperatures above +60° C the load capacity is reduced. Maintenance-free under standard conditions.
