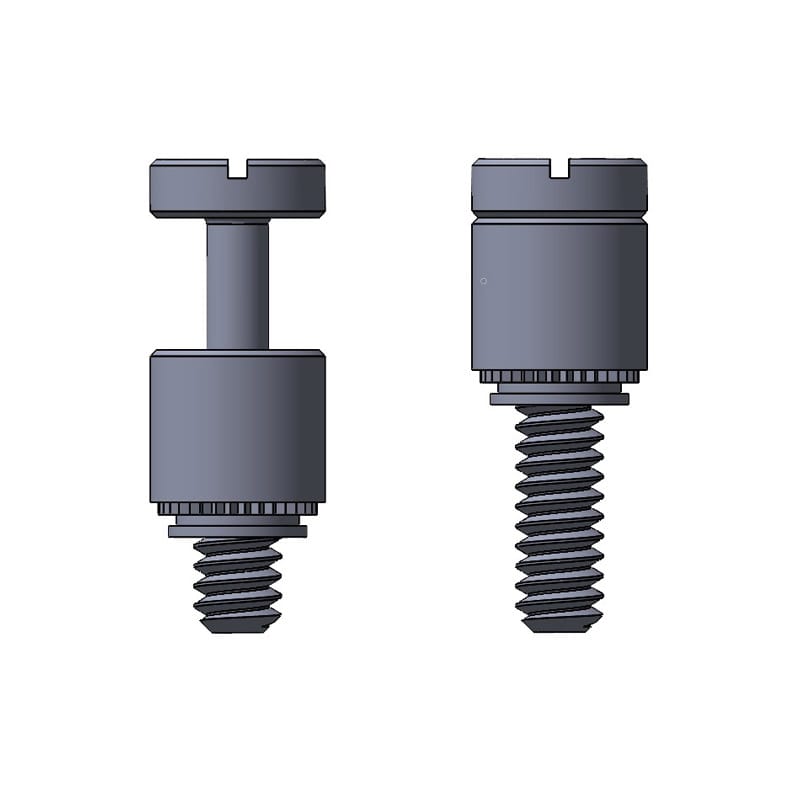

Features
- Attractive, compact design for limited space applications.
- Choices of screw length, material, finish and drive.
- RoHS compliant.
- For use in sheets HRB 60 or less.

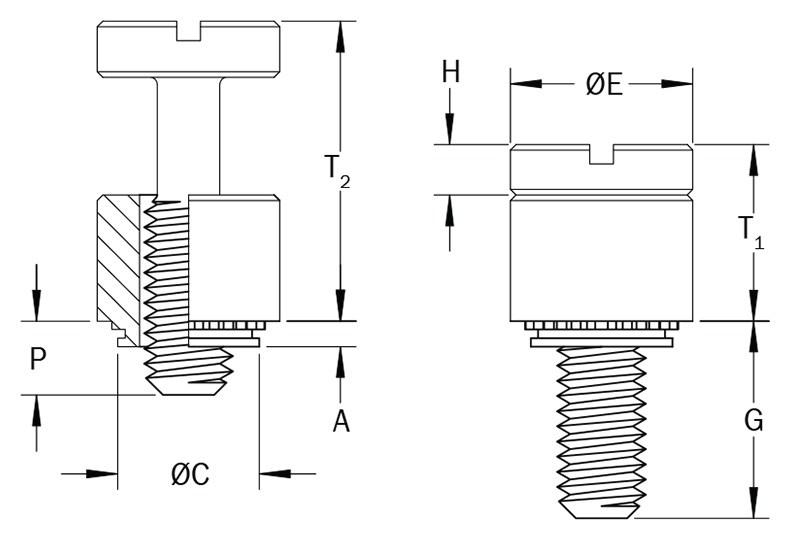

Dimensions
| Thread | Thread Code |
Screw Length Code | Sheet | A Max. | ØC Max. | ØE ±.010 |
G ±.025 |
H ±.005 |
P ±.025 |
T1 Nom. |
T2 Nom. |
Recess Size | |||
| Min. Thick. | Hole Size +.003 -.000 |
Min. Dist. Hole Center to Edge |
Cross | Six-Lobe | |||||||||||
| 4-40 | 440 | 0 | .036 | .203 | .213 | .036 | .202 | .260 | .216 | .080 | .000 | .260 | .436 | #1 | T15 |
| 1 | .316 | .095 | |||||||||||||
| 6-32 | 632 | 0 | .036 | .219 | .230 | .036 | .218 | .276 | .234 | .092 | .000 | .290 | .484 | #2 | T20 |
| 1 | .359 | .120 | |||||||||||||
Material & Finish
| Material Code |
Material Description | Finish Code | Finish Description | |
| Retainer | Screw | |||
| ST | Carbon Steel | Heated-Treated Carbon Steel |
NI | Bright Nickel per ASTM B 689 |
| SS | 300-Series Stainless Steel |
300- Series Stainless Steel |
P | Passivate and/or test per ASTM A 967 |
Installation & Performance
- Punch or drill hole in sheet of hardness HRB 60 or less. Do not deburr edges.
- Place fastener in anvil recess and locate sheet hole over the retainer shank.
- Squeeze the sheet and fastener between parallel anvil and punch surfaces. Use only enough pressure to seat the retainer shoulder flush with the sheet.
Anvil Dimensions
| Thread Code |
Screw Length Code | Anvil Dimensions | ||
| G. Min. | M ±.002 |
¯N ±.002 |
||
| 440 | 0 | .216 | .220 | .285 |
| 1 | .316 | |||
| 632 | 0 | .234 | .250 | .301 |
| 1 | .359 | |||
Performance
| Thread Code |
Test Sheet Material | |||
| Aluminum | Cold-Rolled Steel | |||
| Installation (lbs) |
Push-out (lbs) |
Installation (lbs) |
Push-out (lbs) |
|
| 440 | 1700 | 108 | 2200 | 118 |
| 632 | 1850 | 117 | 2400 | 128 |
(1) Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in panel hole size, thickness, material and installation methods will affect the loads. Pencom recommends testing in the application. Contact your account representative for samples.

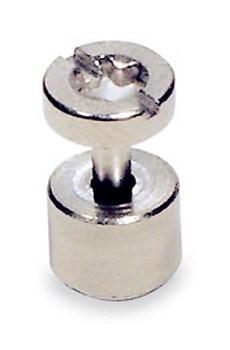

Drives
| Drive | Description |
|---|---|
| SL-TX | Slotted - 6 - Lobe |
| SL-PH | Slotted - Cross Recess |
