Machine Screw Nuts

All Products / Nuts / Inch Nuts / Machine Screw Nuts


Clear
Product Description: N/A Category: Tag:

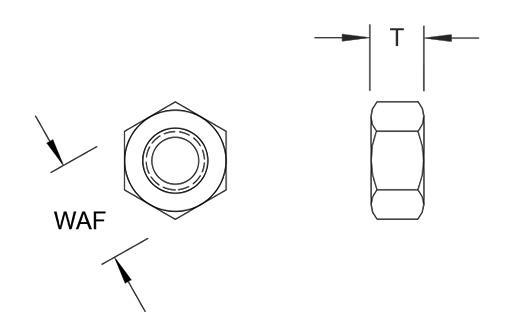

Dimensions

Thread T Thickness WAF Width Across Flats
Coarse Fine
0 – 80 .050 / .043 .156 / .150
1 – 72 .050 / .043 .156 / .150
2 – 56 .066 / .057 .188 / .180
4 – 40 .098 / .087 .250 / .241
6 – 32 .114 / .102 .312 / .302
8 – 32 .130 / .117 .344 / .332
10 – 24 10 – 32 .130 / .117 .375 / .362
12 – 24 .161 / .148 .438 / .423
1/4 – 20 1/4 – 28 .193 / .178 .438 / .423
5/16 – 18 5/16 – 24 .225 / .208 .562 / .545
3/8 – 16 3/8 – 24 .257 / .239 .625 / .607

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STLLow Carbon Steel (STL)Z-BLK Zinc Black
Z Zinc Clear
SSStainless SteelPLN Plain

Contact a PENCOM Account Representative for other material & finish options.
