KPS Nuts

All Products / Nuts / Inch Nuts / KPS Nuts


Clear
Product Description: N/A Category: Tag:

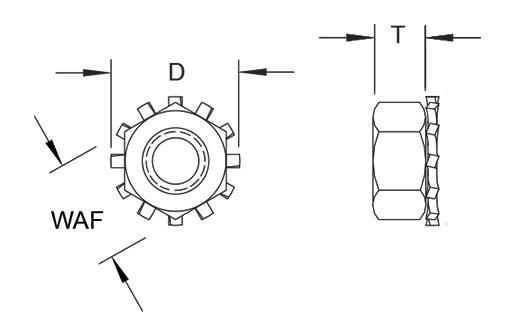

Dimensions

Thread T
Thickness
D
Diameter
WAF
Width Across
Flats
Coarse Fine
4 – 40 .098 / .087 .286 / .277 .250 / .241
6 – 32 .114 / .102 .348 / .338 .312 / .302
6 – 32 SP .098 / .087 .287 / .277 .250 / .241
8 – 32 .130 / .117 .381 / .370 .344 / .332
10 – 24 10 – 32 .130 / .117 .406 / .395 .375 / .362
12 – 24 12 – 28 .161 / .148 .506 / .494 .438 / .423
1/4 – 20 1/4 – 28 .193 / .178 .506 / .494 .438 / .423
5/16 – 18 5/16 – 24 .273 / .258 .592 / .579 .500 / .489
3/8 – 16 3/8 – 24 .385 / .365 .665 / .651 .562 / .551
1/2 – 13 1/2 – 20 .437 / .425 .898 / .878 .750 / .736

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STLLow Carbon Steel (STL)Z-BLK Zinc Black
Z Zinc Clear
SSStainless SteelPLN Plain

Contact a PENCOM Account Representative for other material & finish options.
