Hex Nuts | Style 2

All Products / Nuts / Metric Nuts / Hex Nuts | Style 2


Clear
Product Description: N/A Category: Tag:

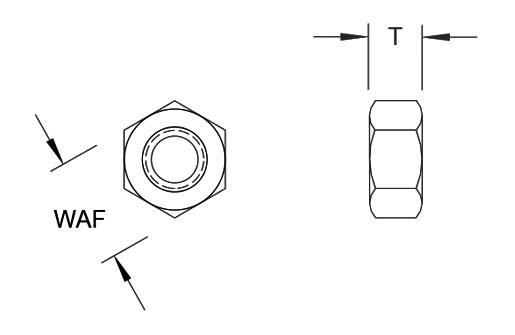

Dimensions

Thread T
Thickness
WAF
Width Across Flats
M3 x 0.5 2.90 / 2.65 5.50 / 5.32
M3.5 x 0.6 3.30 / 3.00 6.00 / 5.83
M4 x 0.7 3.80 / 3.50 7.00 / 6.78
M5 x 0.8 5.10 / 4.80 8.00 / 7.78
M6 x 1.0 5.70 / 5.40 10.00 / 9.78
M8 x 1.25 7.50 / 7.14 13.00 / 12.73
M10 x 1.5 9.30 / 8.94 16.00 / 15.73
M12 x 1.75 12.00 / 11.57 18.00 / 17.73
M14 x 2 14.10 / 13.40 21.00 / 20.67
M16 x 2 16.40 / 15.70 24.00 / 23.67

Material & Finish

Material Code Material Description Finish Code Finish Description
CL12 Class 12 Steel Z Zinc Clear
CL9 Class 9 Steel Z Zinc Clear
SS Stainless Steel PLN Plain
Property Condition Style of Hex Nut Mating with
Property Class
CL9 Non-Heat Treated Style 2 9.8, 8.8, 4.8 and 4.6
CL12 Heat Treated 12.9, 10.9, 9.8, 8.8, 5.8, 4.8 and 4.6
