Hex Nuts

All Products / Nuts / Inch Nuts / Hex Nuts


Clear
Product Description: N/A Category: Tag:

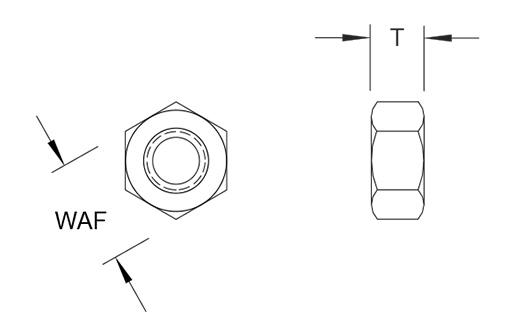

Dimensions

Thread T
Thickness
WAF
Width Across
Flats
Coarse Fine
1/4 – 20 1/4 – 28 .226 / .212 .438 / .428
5/16 – 18 5/16 – 24 .273 / .258 .500 / .489
3/8 – 16 3/8 -24 .337 / .320 .562 / .551
7/16 – 14 7/16 – 20 .385 / .365 .688 / .675
1/2 – 13 1/2 – 20 .448 / .427 .750 / .736
9/16 – 12 9/16 – 18 .496 / .473 .875 / .861
5/8 – 11 5/8 – 18 .559 / .535 .938 / .922
3/4 – 10 3/4 – 16 .665 / .617 1.125 / 1.088

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STLLow Carbon Steel (STL)Z-BLK Zinc Black
Z Zinc Clear
SSStainless SteelPLN Plain

Contact a PENCOM Account Representative for other material & finish options.
