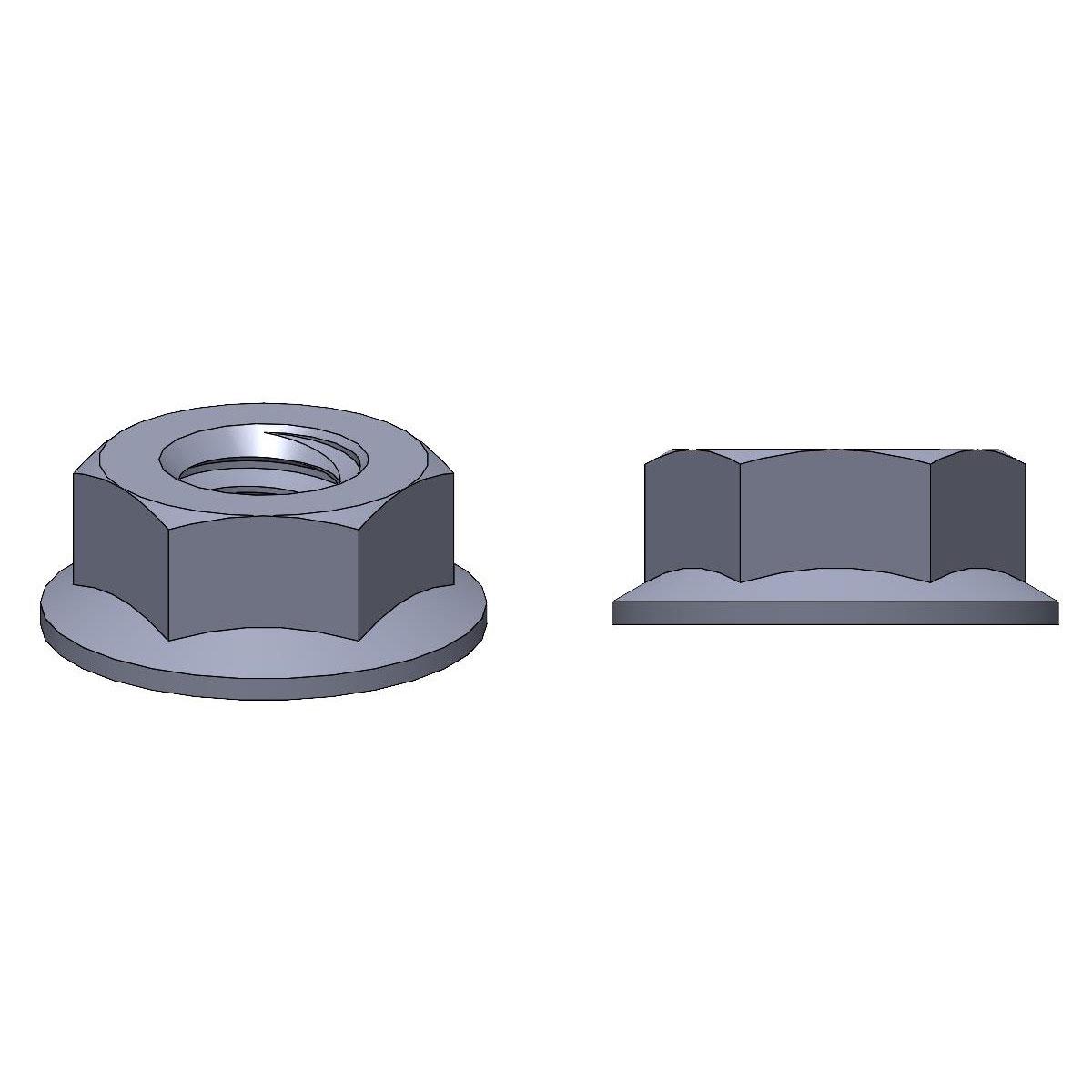

Hex Flange Nuts

All Products / Nuts / Metric Nuts / Hex Flange Nuts


Clear
Product Description: N/A Category: Tag:

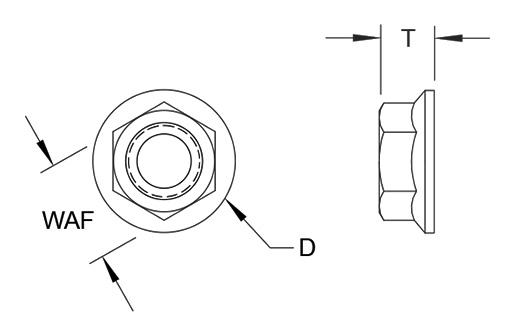

Dimensions

Thread T
Thickness
D
Diameter
MAX
WAF
Width Across Flats
M5 x 0.8 5.00 / 4.70 11.8 8.00 / 7.78
M6 x 1 6.00 / 5.70 14.7 10.00 / 9.78
M8 x 1.25 8.00 / 7.60 17.9 13.00 / 12.73
M10 x 1.5 10.00 / 9.60 21.8 15.00 / 14.73
M12 x 1.75 12.00 / 11.60 26.0 18.00 / 17.73
M14 x 2 14.00 / 13.30 29.9 21.00 / 20.67
M16 x 2 16.00 /15.30 34.5 24.00 / 23.67
M20 x 2.5 20.00 / 18.90 42.8 30.00 / 29.16

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STLLow Carbon Steel (STL)Z Zinc Clear
SSStainless SteelPLN Plain

Contact a PENCOM Account Representative for other material & finish options.
