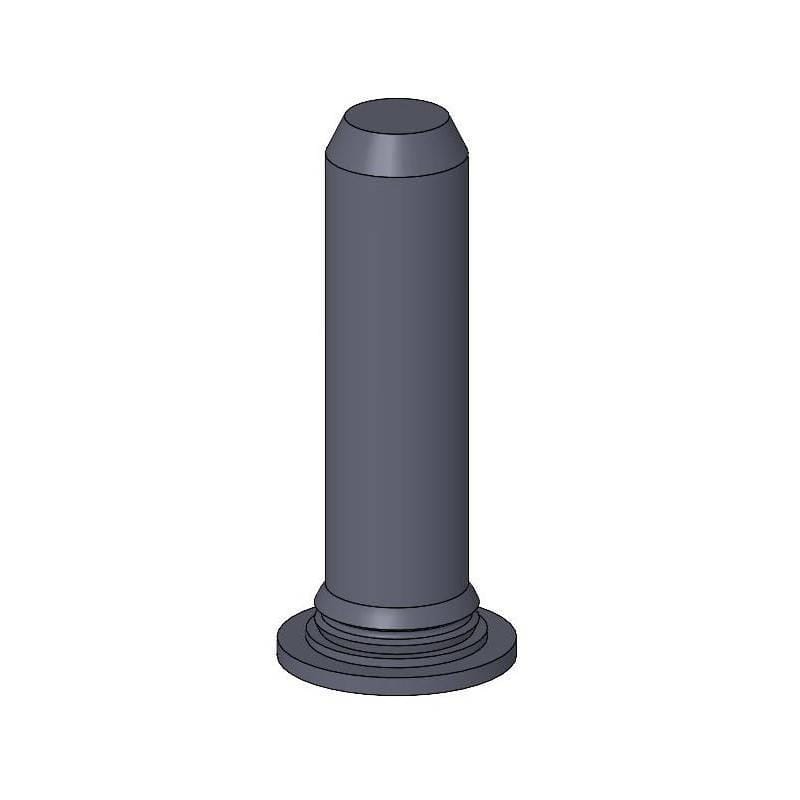

GT | Self-clinching Pilot Pins

All Products / Guide Pins / Metric Guide Pins / GT | Self-clinching Pilot Pins


Clear
Product Description: N/A Category: Tag:

Features

  • Satisfy a wide variety of alignment, location and pivot applications.
  • Self-clinching design installs easily and permanently with a flush appearance on the back of thin panels and sheets.
  • Available in a variety of RoHS-compliant materials and finishes.

Dimensions

General
Pin
Size
Sheet B
±0.05
D
±0.15
A
±0.4
S
Max.
(1)
Minimum
Thickness
Hole Size
+0.08
-0.00
Minimum
Distance
Hole Center
to Edge
M3 1.00 3.50 6.4 3.00 2.11 5.20 2.29
M4 1.00 4.50 7.1 4.00 2.82 6.12 2.29
M5 1.00 5.50 7.6 5.00 3.53 7.19 2.29
M6 1.00 6.50 7.9 6.00 4.24 8.13 2.29
Length
Pin
Size
L (Length) ±0.40
M3 8 10 12 16
M4 8 10 12 16
M5 10 12 16 20
M6 12 16 20

Material & Finish

Material
Code
Material Description Finish
Code
Finish Description For Use in
Sheet Hardness
HRB 70
Max.
HRB 92
Max.
ST Heat Treated Carbon Steel Z Zinc (SCI) with Type III clear chromate per ASTM B 633
SS 300-Series Stainless Steel P Passivated and/or tested per ASTM A 967
S4 Heat Treated 400-Series Stainless Steel P Passivated and/or tested per ASTM A 967

Installation

  1. Punch or drill hole in sheet. Do not deburr edges.
  2. Insert pilot pin through hole in sheet and into the anvil as shown.
  3. Squeeze the sheet and pilot pin head between parallel punch and anvil surfaces. Use only enough pressure to seat the pin head flush with the sheet. Punch and anvil may be ordered using the PENCOM part numbers shown in the tables on the next page, or made from hardened tool steel.
  4. A chamfered anvil is required for sheets .060in (1.7mm) thick or less only.
Anvil Dimensions
Pin
Size
Sheet
Thickness
Anvil Dimensions Anvil
Part
Number
Punch
Part
Number
A
±.05
B
±.05
M3 1.0-1.7 3.11 3.88 TL1355 TL1287
Over 1.7 (1) TL1356
M4 1.0-1.7 4.11 4.88 TL1357 TL1287
Over 1.7 (1) TL1358
M5 1.0-1.8 5.13 5.89 TL1359 TL1287
Over 1.9 (1) TL1360
M6 1.0-1.9 6.12 6.89 TL1361 TL1287
Over 1.9 (1) TL1362

Performance

Metric (Material Codes – ST & SS)
Pin
Size
Test Sheet Installation
(kN)
Push-out
(kN)
Material Hardness
HRB
M3 Aluminum 22 12.0 0.56
Cold-rolled Steel 65 22.0 0.98
M4 Aluminum 19 22.0 0.89
Cold-rolled Steel 66 26.4 1.54
M5 Aluminum 18 28.6 1.01
Cold-rolled Steel 60 35.2 1.76
M6 Aluminum 18 30.8 1.10
Cold-rolled Steel 62 39.6 2.10
Metric (Material Code – S4)
Pin
Size
Test Sheet Installation
(kN)
Push-out
(N)
Material
M3 300-Series Stainless Steel 35.0 1556
M4 300-Series Stainless Steel 45.0 2335
M5 300-Series Stainless Steel 54.0 2535
M6 300-Series Stainless Steel 60.0 2891

Performance data are reference averages based on commonly reported industry values when all installation speci-fications are strictly followed. Variations such as sheet material type, hardness and thickness; hole diameter; method of hole manufacture; size and location of hole burr if any; and amount of installation load will affect the data. PENCOM strongly encourages testing in the application.

Cross References

Subsitute For PEM® Series:

PEM® is a registered trademark of Penn Engineering.

PENCOM Part Description PEM® Part Number
GTS2-M1.5-3-PMPP-1.5MM-3
GTS2-M1.5-4-PMPP-1.5MM-4
GTS2-M1.5-5-PMPP-1.5MM-5
GTS2-M1.5-6-PMPP-1.5MM-6
GTS2-M1.5-8-PMPP-1.5MM-8
GTS2-M1-2-PMPP-1MM-2
GTS2-M1-3-PMPP-1MM-3
GTS2-M1-4-PMPP-1MM-4
GTS2-M1-5-PMPP-1MM-5
GTS2-M2-10-PMPP-2MM-10
GTS2-M2-4-PMPP-2MM-4
GTS2-M2-5-PMPP-2MM-5
GTS2-M2-6-PMPP-2MM-6
GTS2-M2-8-PMPP-2MM-8
GTSS-M3-10-PTPS-3MM-10
GTSS-M3-12-PTPS-3MM-12
GTSS-M3-16TPS-3MM-16
GTSS-M3-16-P-ATCATPXS-3MM-16
GTSS-M3-6TPS-3MM-6
GTSS-M3-8-PTPS-3MM-8
GTSS-M4-10-PTPS-4MM-10
GTSS-M4-12-PTPS-4MM-12
GTSS-M4-16-PTPS-4MM-16
GTSS-M4-5-PTPS-4MM-5
GTSS-M4-7.50-PTPS-4-7.5
GTSS-M4-8-PTPS-4MM-8
GTSS-M5-10TPS-5MM-10
GTSS-M5-10-PTPS-5MM-10
GTSS-M5-12-PTPS-5MM-12
GTSS-M5-16-PTPS-5MM-16
GTSS-M5-20-PTPS-5MM-20
GTSS-M5-7-PTPS-5MM-7
GTSS-M6-12-PTPS-6MM-12
GTSS-M6-16-PTPS-6MM-16
GTSS-M6-20-PTPS-6MM-20
GTSS-M6-8-PTPS-6MM-8
