GT | Self-clinching Pilot Pins

All Products / Guide Pins / Inch Guide Pins / GT | Self-clinching Pilot Pins


Clear
Product Description: N/A Category: Tag:

Features

  • Satisfy a wide variety of alignment, location and pivot applications.
  • Self-clinching design installs easily and permanently with a flush appearance on the back of thin panels and sheets.
  • Available in a variety of RoHS-compliant materials and finishes.

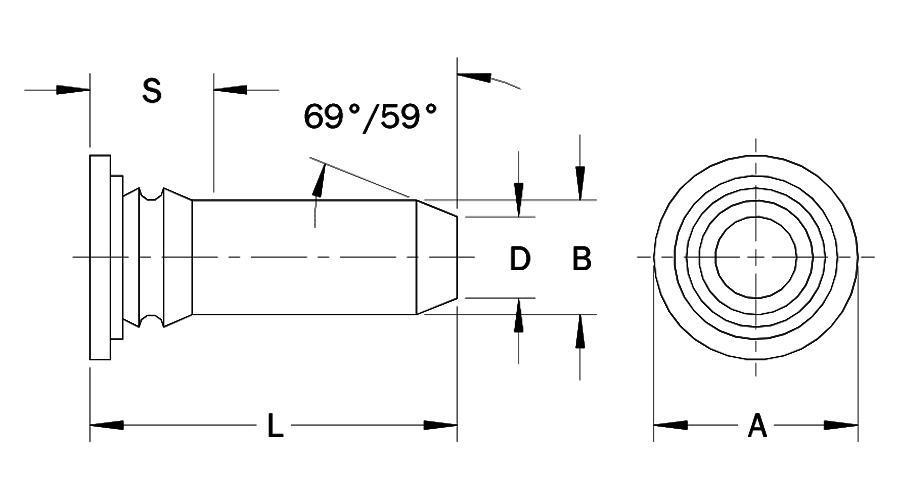

Dimensions

General
Pin
Size
Sheet B
±.002
D
±.006
A
±.015
S
Max.
(1)
Minimum
Thickness
Hole Size
+.003
-.000
Minimum
Distance
Hole Center
to Edge
.125 .040 .144 .250 .125 .090 .205 .090
.187 .040 .205 .280 .187 .132 .270 .090
.250 .040 .272 .310 .250 .177 .335 .090
Length
Pin
Size
L (Length) ±.015
.125 .375 .500 .625 .750
.187 .375 .500 .625 .750 1.000
.250 .500 .625 .750 1.000

Material & Finish

Material
Code
Material Description Finish
Code
Finish Description For Use in
Sheet Hardness
HRB 70
Max.
HRB 92
Max.
ST Heat Treated Carbon Steel Z Zinc (SCI) with Type III clear chromate per ASTM B 633
SS 300-Series Stainless Steel P Passivated and/or tested per ASTM A 967
S4 Heat Treated 400-Series Stainless Steel P Passivated and/or tested per ASTM A 967

Installation

  1. Punch or drill hole in sheet. Do not deburr edges.
  2. Insert pilot pin through hole in sheet and into the anvil as shown.
  3. Squeeze the sheet and pilot pin head between parallel punch and anvil surfaces. Use only enough pressure to seat the pin head flush with the sheet. Punch and anvil may be ordered using the PENCOM part numbers shown in the tables on the next page, or made from hardened tool steel.
  4. A chamfered anvil is required for sheets .060in (1.7mm) thick or less only.
Anvil Dimensions
Pin
Size
Sheet
Thickness
Anvil Dimensions Anvil
Part
Number
Punch
Part
Number
A
±.002
B
±.002
.125 .040-.060 .130 .160 TL1346 TL1287
Over .060 (1) TL1347
.187 .040-.065 .192 .220 TL1348 TL1287
Over .065 (1) TL1349
.250 .040-.075 .255 .285 TL1350 TL1287
Over .075 (1) TL1351

Performance

Material Codes – ST & SS
Pin
Size
Test Sheet Installation
(lbs)
Push-out
(lbs)
Material Hardness
HRB
.125 Aluminum 20 4500 150
Cold-rolled Steel 62 6500 250
.187 Aluminum 18 6500 230
Cold-rolled Steel 60 8000 400
.250 Aluminum 18 7000 270
Cold-rolled Steel 62 9000 500
Material Code – S4
Pin
Size
Test Sheet Installation
(lbs)
Push-out
(lbs)
Material
.125 300-Series Stainless Steel 8000 350
.187 300-Series Stainless Steel 12000 570
.250 300-Series Stainless Steel 14000 650

Performance data are reference averages based on commonly reported industry values when all installation speci-fications are strictly followed. Variations such as sheet material type, hardness and thickness; hole diameter; method of hole manufacture; size and location of hole burr if any; and amount of installation load will affect the data. PENCOM strongly encourages testing in the application.

Cross References

Subsitute For PEM® Series:

PEM® is a registered trademark of Penn Engineering.

PENCOM Part Description PEM® Part Number
GTS4-.250-.375-PTP4-250-6
GTSS-.125-.300-PYC3-21338
GTSS-.125-.375-PTPS-125-6
GTSS-.125-.500-PTPS-125-8
GTSS-.125-.625-PTPS-125-10
GTSS-.125-.750-PTPS-125-12
GTSS-.187-.375-PTPS-187-6
GTSS-.187-.500-PTPS-187-8
GTSS-.187-.625-PTPS-187-10
GTSS-.187-.750-PTPS-187-12
GTSS-.187-1.000-PTPS-187-16
GTSS-.187-1.250-PTPS-187-1.250
GTSS-.250-.375-PTPS-250-6
GTSS-.250-.500-PTPS-250-8-P
GTSS-.250-.625-PTPS-250-10
GTSS-.250-.750-PTPS-250-12
GTSS-.250-1.000-PTPS-250-16
