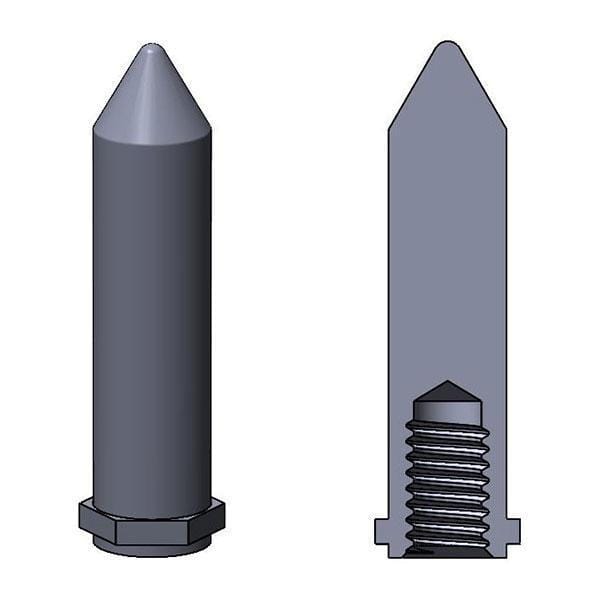

GF | Female Thread Guide Pins

All Products / Guide Pins / Metric Guide Pins / GF | Female Thread Guide Pins


Clear
Product Description: N/A Category: Tag:

Features

  • Precisely aligns stacked and/or mating panels and chasses.
  • Female thread design allows for flexibility in mating male thread fastener selection.
  • Wide range of thread sizes, pin diameters and lengths accommodates most alignment requirements. Custom sizes available by request.
  • See Pencom GR guide pin nuts for a complete alignment solution.
  • Choice of RoHS compliant materials and finishes.

Dimensions

General
Size Code Thread Sheet ØB
+0.00
-0.08
C
Max.
D
Nom.
ØF
+0.00
-0.08
T
Min.
WAF
Nom.
Minimum
Thickness
Hole Size
+0.08
-0.00
M3 M2 x 0.4 0.76 3.02 3.00 0.71 1.27 3.00 4.06 3.97
M4 M3 x 0.5 0.76 4.01 3.99 0.71 1.27 3.99 5.97 4.76
M5 M3.5 x 0.6 0.76 5.00 4.98 0.71 1.27 4.98 6.99 5.56
M6 M4 x 0.7 0.76 5.99 5.97 0.71 1.27 5.97 7.92 6.35
Length – 60° Point
Size Code L (Length Code) +0.00/-0.25
6 8 10 12 15 20 25
S Ref.
M3 4.15 6.15 8.15 10.15 13.15 18.15 23.15
M4 3.30 5.30 7.30 9.30 12.30 17.30 22.30
M5 2.40 4.40 6.40 8.40 11.40 16.40 21.40
M6 3.55 5.55 7.55 10.55 15.55 20.55
Length – 30° Point
Size Code L (Length Code) +0.00/-0.25
8 10 12 15 20 25 30
S Ref.
M3 3.50 5.50 7.50 10.50 15.50 20.50 25.50
M4 4.00 6.00 9.00 14.00 19.00 24.00
M5 4.50 7.50 12.50 17.50 22.50
M6 6.00 11.00 16.00 21.00

Technical Data

Size Code Thread Screw Installation Torque1 (N-m) Thread Engagement Min.1 (mm)
M3 M2 x 0.4 0.14-0.19 2.0
M4 M3 x 0.5 0.51-0.69 3.0
M5 M3.5 x 0.6 0.8-1.1 3.5
M6 M4 x 0.7 1.2-1.6 4.0

(1) Installation torques and thread engagements are for zinc–plated Class 4.8 carbon steel screws used with zinc–plated carbon steel guide pins and for reference only. Pencom recommends testing in the application.

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STCarbon Steel (ST)Z Zinc Clear
SSStainless SteelP Passivated

Contact a PENCOM Account Representative for other material & finish options.
