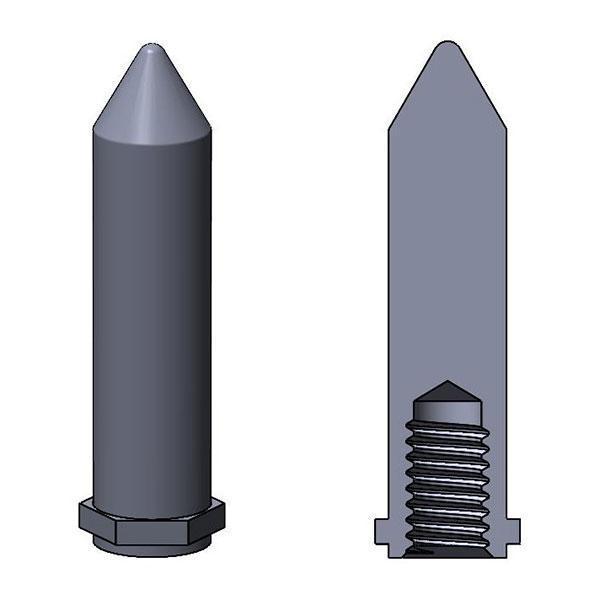

GF | Female Thread Guide Pins

All Products / Guide Pins / Inch Guide Pins / GF | Female Thread Guide Pins


Clear
Product Description: N/A Category: Tag:

Features

  • Precisely aligns stacked and/or mating panels and chasses.
  • Female thread design allows for flexibility in mating male thread fastener selection.
  • Wide range of thread sizes, pin diameters and lengths accommodates most alignment requirements. Custom sizes available by request.
  • See Pencom GR guide pin nuts for a complete alignment solution.
  • Choice of RoHS compliant materials and finishes.

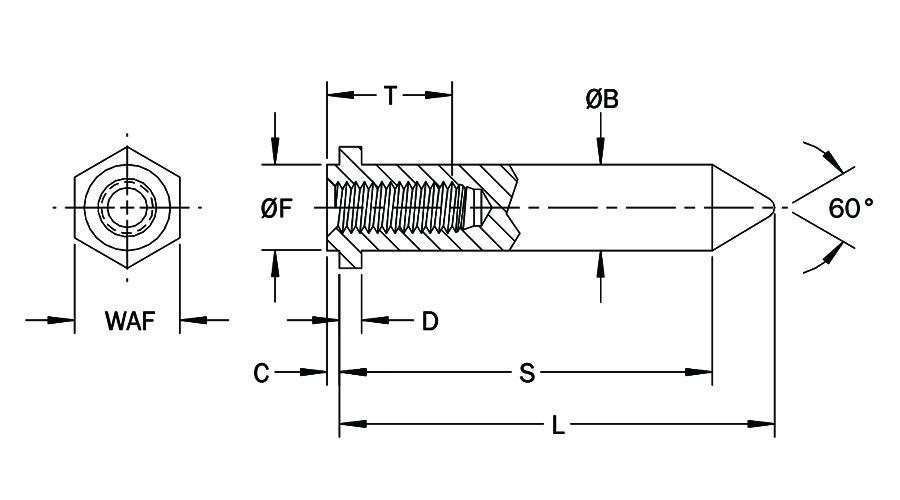

Dimensions

General
Size Code Thread Sheet ØB
+.000
-.003
C
Max.
D
Nom.
ØF
+.000
-.003
T
Min.
WAF
Nom.
Minimum
Thickness
Hole Size
+.003
-.000
256 2-56 .030 .119 .118 .028 .050 .118 .160 .156
440 4-40 .030 .158 .157 .028 .050 .157 .235 .187
632 6-32 .030 .197 .196 .028 .050 .196 .275 .219
832 8-32 .030 .236 .235 .028 .050 .235 .312 .250
Length – 60° Point
Size Code L (Length Code) +.000/-.010
.250 .312 .375 .437 .562 .750 1.000
S Ref.
256 .177 .239 .302 .364 .489 .677 .927
440 .144 .206 .269 .331 .456 .644 .894
632 .108 .170 .233 .295 .420 .608 .858
832 .137 .200 .262 .387 .575 .825
Length – 30° Point
Size Code L (Length Code) +.000/-.010
.312 .375 .437 .562 .750 1.000 1.187
S Ref.
256 .135 .198 .260 .385 .573 .823 1.010
440 .139 .201 .326 .514 .764 .951
632 .142 .267 .455 .705 .892
832 .208 .396 .646 .833

Technical Data

Size Code Thread Screw Installation Torque1 (in-lbs) Thread Engagement Min.1(in)
256 2-56 1.9-2.6 .086
440 4-40 4.0-5.5 .112
632 6-32 7-10 .138
832 8-32 14-19 .164

(1) Installation torques and thread engagements are for zinc–plated Grade 2 carbon steel screws used with zinc–plated carbon steel guide pins and for reference only. Pencom recommends testing in the application.

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STCarbon Steel (ST)Z Zinc Clear
SSStainless SteelP Passivated

Contact a PENCOM Account Representative for other material & finish options.
