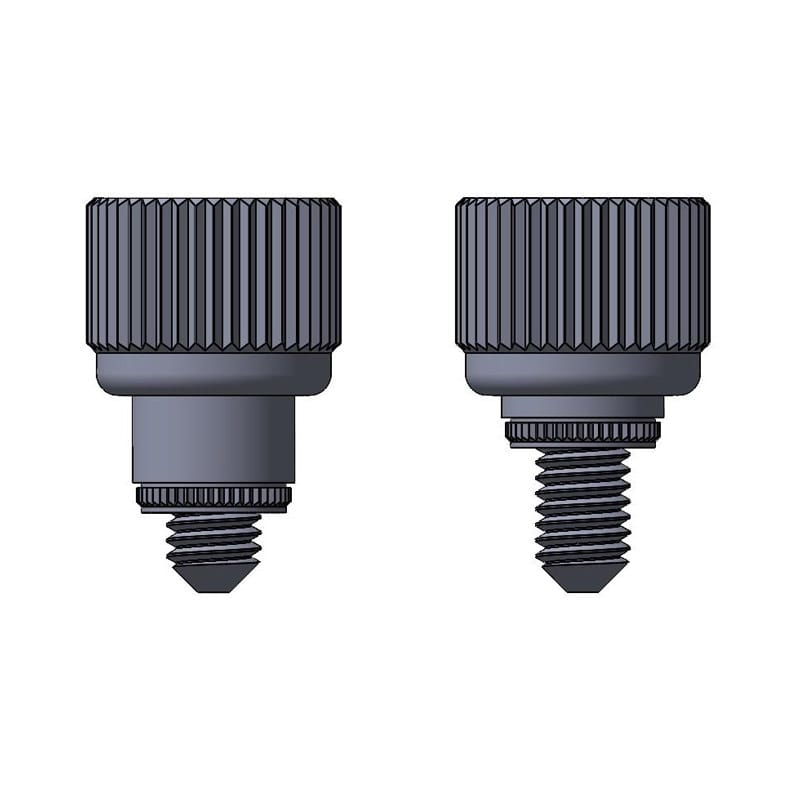

CPB | Broaching

All Products / Captive Screws / Metric Captive Screws / CPB | Broaching


Clear
Product Description: N/A Category: Tag:

Dimensions

Thread Thread
Code
Screw
Length
Code
Sheet ØC ØE P(1) P(2)
Min.
Thickness
Hole
Size
M3 x 0.5 M3 1.50 1.6 5.70/5.55 6.10 10.60 1.50 4.60
3.30 3.30 6.10
4.80 4.80 7.60
6.40 6.40 9.40
M3.5 x 0.6 M3.5 1.40 1.6 6.50/6.30 6.90 11.50 1.40 6.20
3.00 3.00 7.80
4.60 4.60 9.40
6.20 6.20 11.00
General (Continued)
P(3) H(1) H(2) Total Float
of Screw
in Ferrule
Crossrecess
Size
Six-Lobe
Recess
Size
Anvil
ØM
0.00 11.20 8.40 0.7 #1 T10 3.20
1.70
3.20
4.80
0.00 14.80 10.00 0.8 #2 T15 3.70
1.40
3.00
4.60

  1. All dimensions are reference unless toleranced.
  2. Pull–out force 80 lbs and side load force against unfastened knob 45 lbs based on drilled holes in G-10 PC board. Variations in panel hole size, thickness,material andinstallation methods will affect the loads. Pencom recommends testing in the application.Contact your account representative for samples.

Material & Finish

Material/Finish
Code
Retainer Spring & CPD Washer Knob Screw
Material Finish Material Finish Material Finish Material Finish
A 300-Series
Stainless
Steel
Passivate3 300-Series Stainless Steel Passivate3 6000-Series
Aluminum
Natural Heat-Treated
Carbon Steel
Zinc1
B Black
Powder Coat
Zinc and Black
Powder Coat2
C Natural 400-Series Stainless Steel Passivate3
D Black
Powder Coat
Passivate and Black Powder Coat4


(1) Zinc SC1 .0002″ (5 μm) min. with Type III Clear Chromate per ASTM B 633.
(2) Zinc SC1 .0002″ (5 μm) min. with Type III Clear Chromate per ASTM B 633 and black powder coat (screw head only).
(3) Passivate per ASTM A 967
(4) Passivate per ASTM A 967 and black powder coat (screw head only).

Installation

  1. Punch or drill hole in sheet. Do not deburr edges.
  2. Insert captive screw in sheet hole and anvil as shown.
  3. Squeeze the captive screw and sheet between parallel punch and anvil surfaces. Use only enough pressure to seat the retainer shoulder flush with the sheet. Punch and anvil should be made from hardened steel.

Drives

DriveDescription
TX6 - Lobe
PHCross Recess
SLSlotted
SL-TXSlotted - 6 - Lobe
SL-PHSlotted - Cross Recess
